How to use VariadicView, SwiftUI's Private View API

SwiftUI has an undocumented system for interacting with collections of View types known as VariadicView. The enum _VariadicView is the entry point to this system, which includes other types like _VariadicView_MultiViewRoot and _VariadicView.Tree. The details of these were explored in a great post from MovingParts and there have been a few other helpful blogs about it.

@available(iOS 13.0, macOS 10.15, tvOS 13.0, watchOS 6.0, *)
public enum _VariadicView {
  public typealias Root = SwiftUI._VariadicView_Root
  public typealias ViewRoot = SwiftUI._VariadicView_ViewRoot
  public typealias Children = SwiftUI._VariadicView_Children
  public typealias UnaryViewRoot = SwiftUI._VariadicView_UnaryViewRoot
  public typealias MultiViewRoot = SwiftUI._VariadicView_MultiViewRoot
  @frozen public struct Tree<Root, Content> where Root : SwiftUI._VariadicView_Root {
    public var root: Root
    public var content: Content
    @inlinable internal init(root: Root, content: Content) {
            self.root = root
            self.content = content
        }
    @inlinable public init(_ root: Root, @SwiftUI.ViewBuilder content: () -> Content) {
            self.root = root
            self.content = content()
        }
  }
}

When I first read about it, I didn't see the applications to my code. As with most SwiftUI, it relies heavily on generics and can be difficult to see how to use it just from reading the API. Since then, I've made it a core part of SnapshotPreviews and learned that, despite being a private API, it is very safe to use in production - in fact, many popular apps use it extensively.

This post will explain the specific use case I found for extracting snapshots from SwiftUI previews. Hopefully a concrete example will inspire others to use this powerful SwiftUI feature!

Snapshot previews

SnapshotPreviews is an open-source framework to turn Xcode previews into image snapshots. It powers the Emerge Tools Snapshots product that brings automated snapshot testing to pull requests.

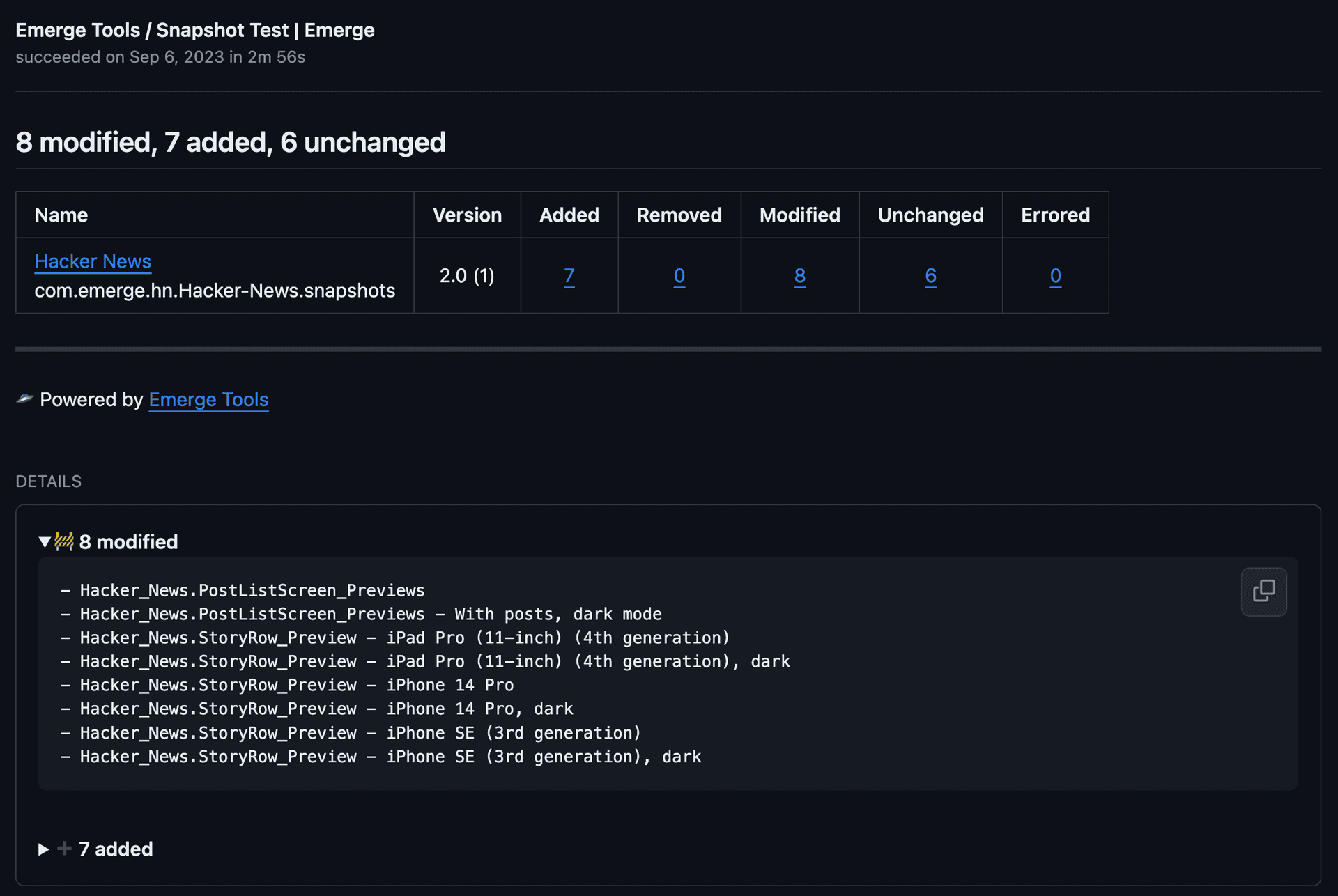

Snapshots status check

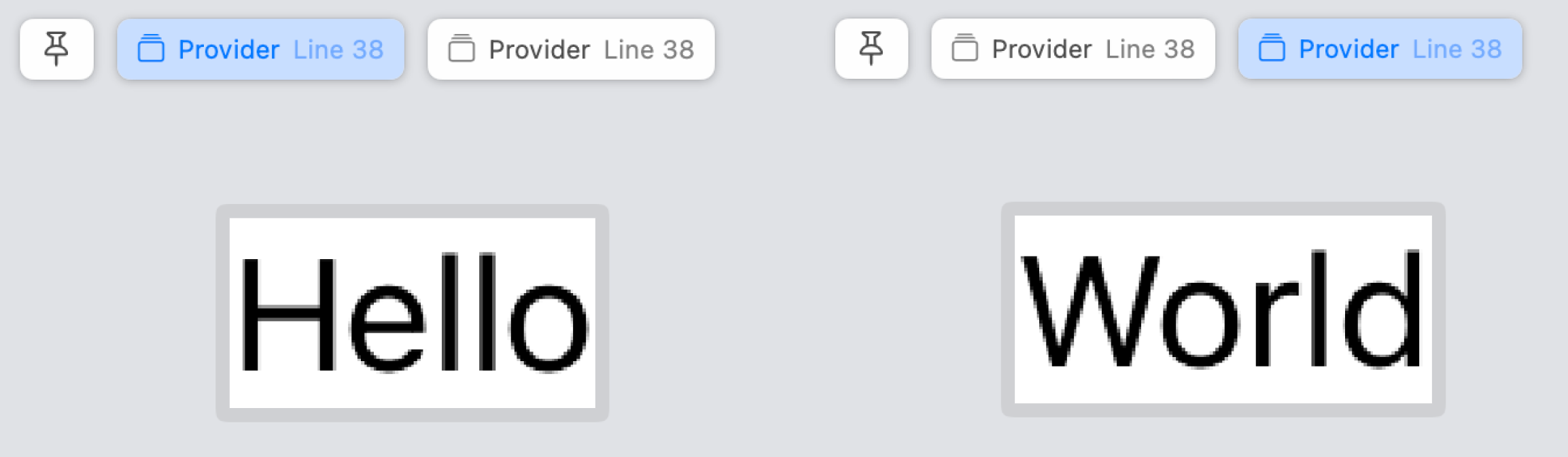

When you create an Xcode preview with SwiftUI's PreviewProvider, you can return multiple previews in a single provider using containers such as Group, TupleView, and ForEach. For example, this code would create two previews:

struct Provider: PreviewProvider {
  static var previews: some View {
    Group {
      Text("Hello")
      Text("World")
    }.previewLayout(.sizeThatFits)
  }
}

To snapshot each of these previews, we need to take the View from a preview provider and split it into multiple views, which can be rendered separately. First, I tried doing this using runtime reflection.

Inspecting Swift

The open-source framework ViewInspector uses runtime reflection like Mirror to traverse a SwiftUI view hierarchy and access subviews. You can use it to access internal properties of Apple views, like each subview of a TupleView. However, this solution required brittle checks for every type of view and was prone to breaking, Ex: Optional, Group, Tuple, and ForEach. Additionally, it wouldn't work if you had a custom View that conformed to VariadicView or a custom ViewModifier that changes the number of views. I needed something more robust to get snapshots working well.

Layouts

In iOS 16, SwiftUI added native support for layouts. This lets you treat a View as a collection of views to arrange in custom positions. It does almost what I needed, but it does not support hiding views in the collection.

Variadic View

The solution to match Xcode's previewing behavior is to use VariadicView. The whole thing is about 10 lines of code.

First, I define a new type, ViewSelector, which conforms to _VariadicView_MultiViewRoot and, therefore, also View. This type has one property position, which selects the position in the child views to display.

fileprivate struct ViewSelector: _VariadicView_MultiViewRoot {
    let position: Int
    func body(children: _VariadicView.Children) -> some View {
      children[position]
    }
}

The body function, required by the protocol, receives the children as _VariadicView.Children. This type conforms to RandomAccessCollection so we can subscript the children and access only the selected position.

Next, an extension on View provides functionality to select the subview at a specific index. This uses _VaradicView.Tree. The new view type is the tree's root and self is the content of the tree.

extension View {
  func selectSubview(_ position: Int) -> some View {
    _VariadicView.Tree(ViewSelector(position: position)) {
      self
    }
  }
}

Is it safe to use?

We can see all the details of this API in /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS.sdk/System/Library/Frameworks/SwiftUI.framework/Modules/SwiftUI.swiftmodule/arm64-apple-ios.swiftinterface. But, this is a private API, so is it safe to use in production? I think it is, and it has been used successfully by many apps.

The key reason you can use it is the VariadicView API is already used in apps, even without developers writing the code explicitly. _VariadicView can be emitted into your app just by using HStack since it is part of the @inlinable initializer:

@frozen public struct HStack<Content> : SwiftUI.View where Content : SwiftUI.View {
  @usableFromInline
  internal var _tree: SwiftUI._VariadicView.Tree<SwiftUI._HStackLayout, Content>
  @inlinable public init(alignment: SwiftUI.VerticalAlignment = .center, spacing: CoreFoundation.CGFloat? = nil, @SwiftUI.ViewBuilder content: () -> Content) {
        _tree = .init(
            root: _HStackLayout(alignment: alignment, spacing: spacing), content: content())
    }

The struct is also marked with @frozen, making _VariadicView.Tree part of the SwiftUI ABI. If it changed, it would break previously compiled apps that used HStack. There are also public SwiftUI types that conform to _VariadicView.UnaryViewRoot, such as GridLayout, making it impossible to remove these protocols. Thanks to @EricHoracek for pointing out these examples!

Since this VariadicView code is already used by having the compiler emit it inline, it's unlikely there would be any problem using it from your source code directly. Emerge is now using it as the root view of every snapshot we generate, and it might be useful for your views as well!
